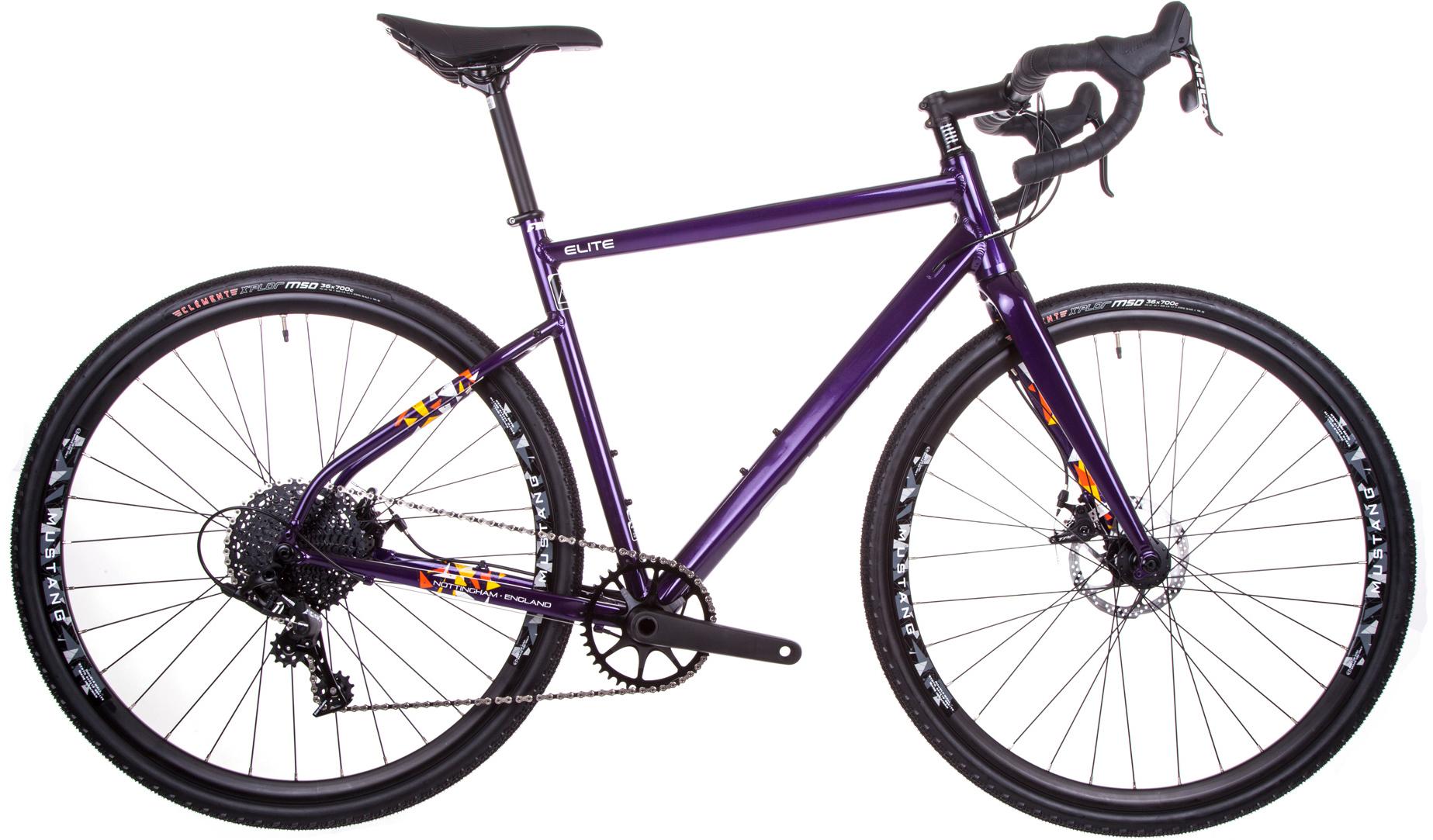

Raleigh Mustang Elite Adventure Bike - XS, S, M, L, XL Frames
651290

Raleigh Mustang Elite Adventure Bike - XS, S, M, L, XL Frames
10 people are viewing now
5 purchases during last 48 hours

Raleigh Mustang Elite Adventure Bike - XS, S, M, L, XL Frames
651290

N/A
Please select a variation to see the final price

  • Brake Type : Cable Disc Brakes
  • Forks : Gravel specific carbon fork with tapered headtube
  • Groupset : SRAM Apex 1 x 11
undefined

1 Select Product Options

Size
For fitting, please change quantity to 1 and add each item and fit separately
Quantity:

2 Would You Like It Built?

Please Note: Adding FREE bike build to a Click & Collect order will add additional days to your collection time.
To ensure the safety of our customers and colleagues your local store will call you to arrange a suitable collection date and time.

3 Select Buying Option

Use my location
Please select a valid postcode or location from list
Booking system unavailable, please try again later.
FREE Click & Collect is not available
Raleigh Mustang Elite Adventure Bike - XS, S, M, L, XL Frames
Raleigh Mustang Elite Adventure Bike - XS, S, M, L, XL Frames
N/A
Please select a variation to see the final price

Raleigh Mustang Comp Adventure Bike

The star of our Adventure Range, the Mustang is designed for the real world of getting to work or grabbing some fun at the weekend. A hybrid bike built for speed and agility, the Mustang Elite finds the perfect balance between a road and off road bike allowing you to ride on a wide range of terrains.
  • Frame: Super lightweight double butted Aluminium frame
  • Forks: Gravel specific carbon
  • Gears: SRAM Apex 1
  • Brakes: Cable actuated TRP Spyre disc brakes
  • Wheels: 700c - Clement X'Plor MSO tyres

Raleigh Mustang Comp Adventure Bike Extra Info

  • FREE build
  • Unlimited lifetime safety checks
  • Lifetime guarantee on frames and rigid forks*
  • Cyclecare available

*Please see our T&C's here




Raleigh Adventure Bike Size Guide





Mens


Height (Inch) Height (cm) Frame Size
5' 1" - 5' 4" 154 - 162 X Small
5' 4" - 5'7" 162 - 170 Small
5' 6" - 5' 9" 167 - 175 Medium
5' 9" - 6' 0" 175 - 182 Large
6'+ 182 - 200 X Large

Geometry Table


Size XS S M L XL
ST (Seat tube) 460mm 500mm 530mm 550mm 580mm
TT (Top tube) 515mm 525mm 560mm 575mm 590mm
HT (Head tube) 130mm 130mm 155mm 180mm 195mm
SA (Seat angle) 74.5° 74.5° 73° 72.5° 72.5°
HA (Head angle) 70.5° 71° 71° 71° 71°
BBd (Bottom bracket drop) 77.5mm 77.5mm 75mm 72.5mm 72.5mm
Rake (Fork offset) 50mm 50mm 50mm 50mm 50mm
RC (Chainstays) 440mm 440mm 440mm 440mm 440mm
Stem 90mm 90mm 100mm 100mm 110mm
Handlebars Width/Rise 400mm 400mm 420mm 420mm 440mm
Crank length 165mm 170mm 170mm 172.5mm 175mm


Additional Information:


Learn more about our maximum weight limits on adult bikes here.
