Carrera Vanquish Disc Mens Road Bike - Black - M, L Frames
642026
- Brake Type : Cable Disc Brakes
- Forks : Carbon blade, alloy steerer
- Groupset : Shimano Claris 2x8

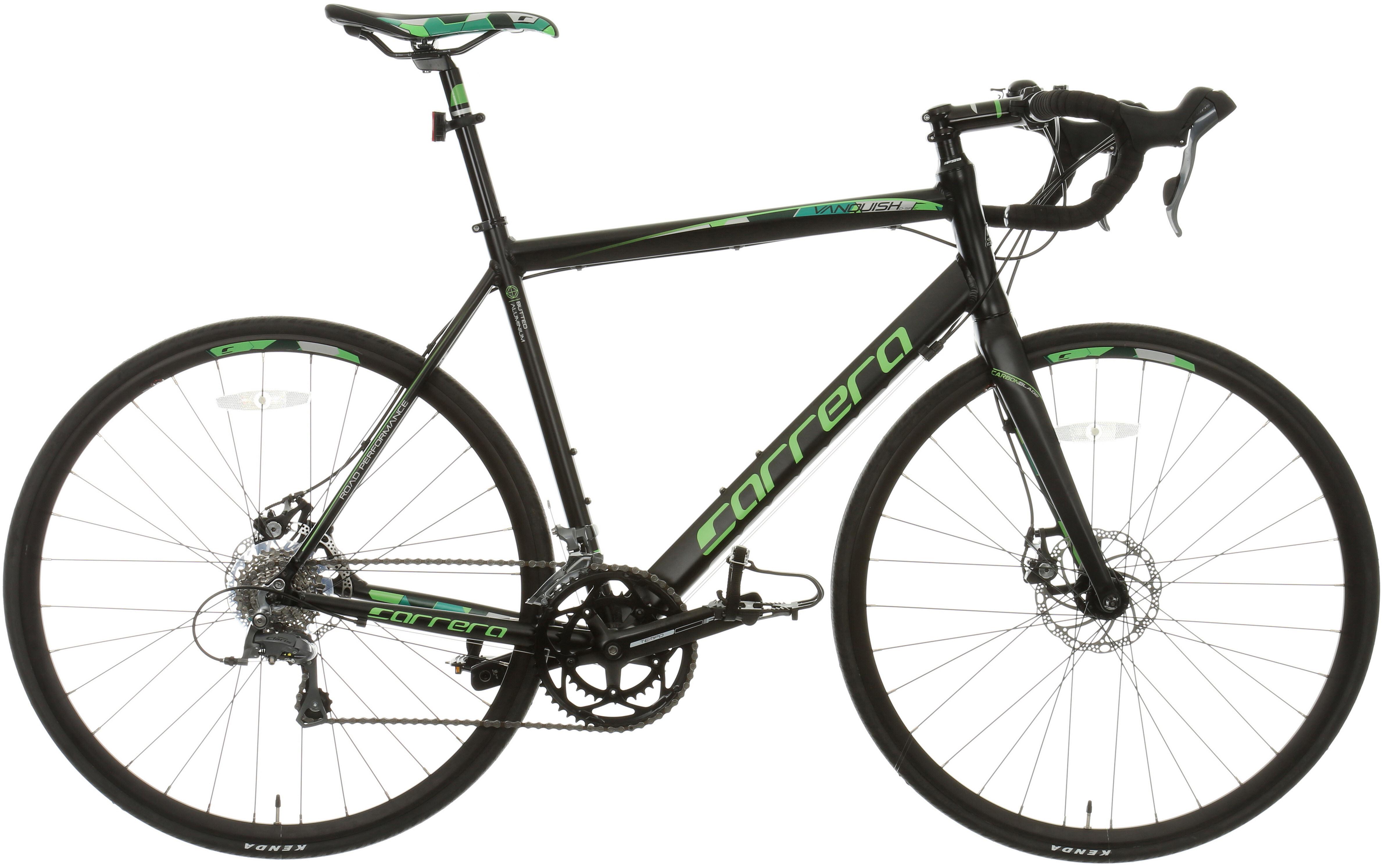

Carrera Vanquish Disc Mens Road Bike - Black
The Carrera Vanquish Disc Mens Road Bike - Black is a fast yet comfortable bike designed with the sportive rider in mind. Its triple butted aluminium frame combines the best in strength and durability, while its 16 speed Shimano gearing and narrow 700c double wall aluminium wheels will help you drive speed along straights and comfortably climb any hills you may come across.
- Frame: Triple butted aluminium frame means reduced weight but no loss of strength and durability
- Forks: Alloy steerers and carbon blade reduces road vibrations
- Gears: 16 Speed Shimano Claris gearing gives great shifting in all conditions
- Brakes: Mechanical disc brakes bring superior stopping power to the road
- Wheels: Narrow 700c double wall aluminium wheels for faster speed on tarmac
Carrera Vanquish Disc Mens Road Bike - Black Extra Info
- FREE build
- Unlimited lifetime safety checks
- Lifetime guarantee on frames and rigid forks*
- Leisure Cable Cyclecare available
Carrera Road Bike Size Guide
Mens
| Height (Inch) | Height (cm) | Frame Size |
|---|---|---|
| 5' 5" - 5' 10" | 165 - 177 | S (51cm) |
| 5' 8" - 6' 1" | 172 - 185 | M (54cm) |
| 5' 11" - 6' 3" | 180 - 190 | L (58cm) |
Men's Geometry Table
| Size | S (16") | M (18") | L (20") |
|---|---|---|---|
| ST (Seat tube) | 510mm | 540mm | 580mm |
| TT (Top tube) | 535mm | 555mm | 585mm |
| HT (Head tube) | 125mm | 145mm | 185mm |
| SA (Seat angle) | 74.5 degrees | 73 degrees | 72.5 degrees |
| HA (Head angle) | 72.5 degrees | 73.5 degrees | 73.5 degrees |
| BBD (Bottom Bracket Drop) | 66mm | 66mm | 66mm |
| Rake (Fork offset) | 45mm | 45mm | 45mm |
| RC (Chainstays) | 410mm | 410mm | 410mm |
| Stem | 90mm | 100mm | 110mm |
| Handlebars Width | 400mm | 420mm | 440mm |
| Seatpost Length | 350mm | 350mm | 350mm |
| Crank Length | 170mm | 172.5mm | 172.5mm |
| Stack | 525mm | 548mm | 586mm |
| Reach | 389mm | 393mm | 400mm |
